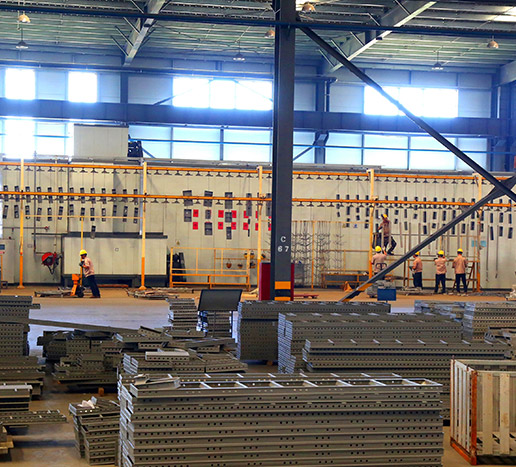

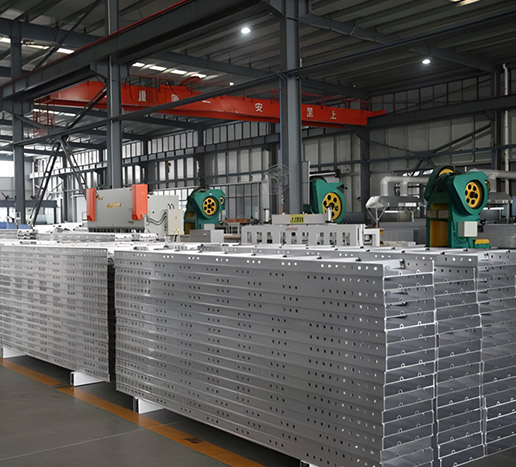

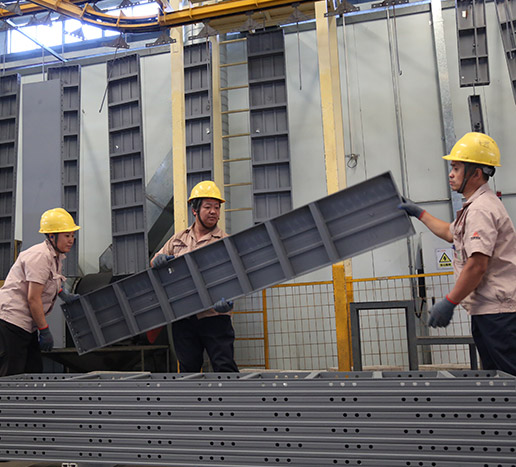

Hawke is responsible for deepening the design of the aluminium formwork system drawings for construction, including the preparation of various formwork processing drawings, manufacturing and processing of aluminium formwork, as well as pre-assembly, packaging, transportation, and on-site technical guidance.

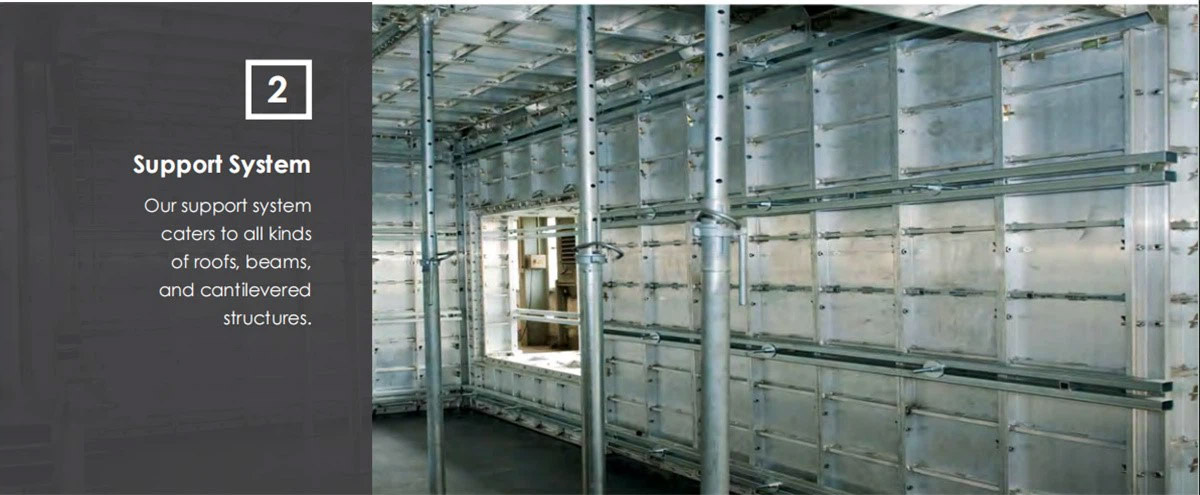

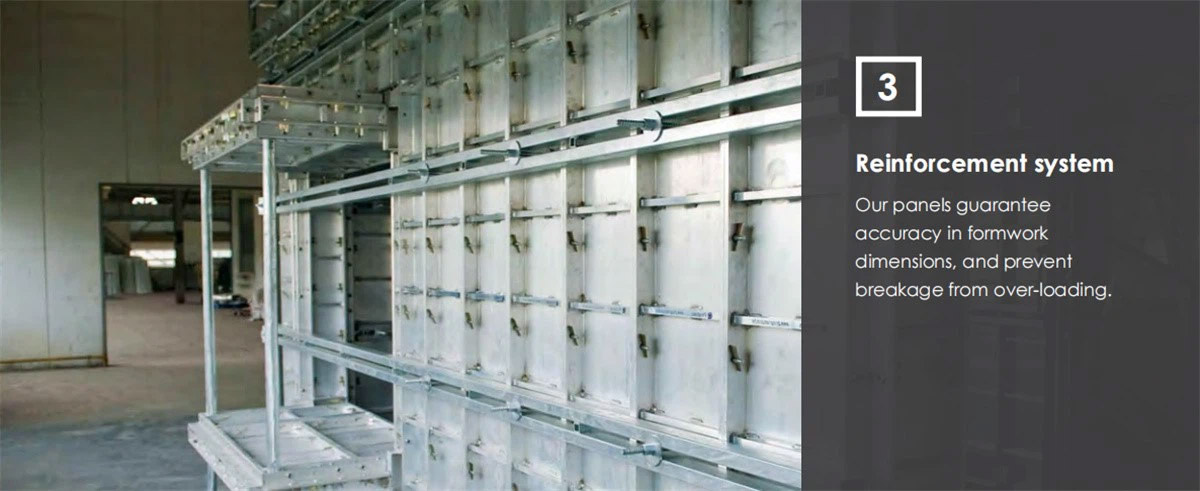

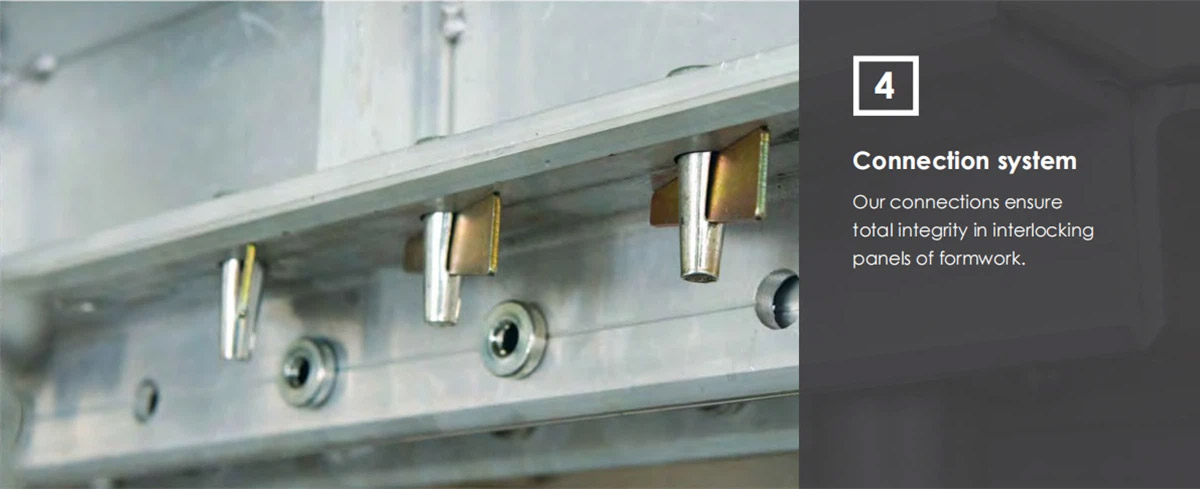

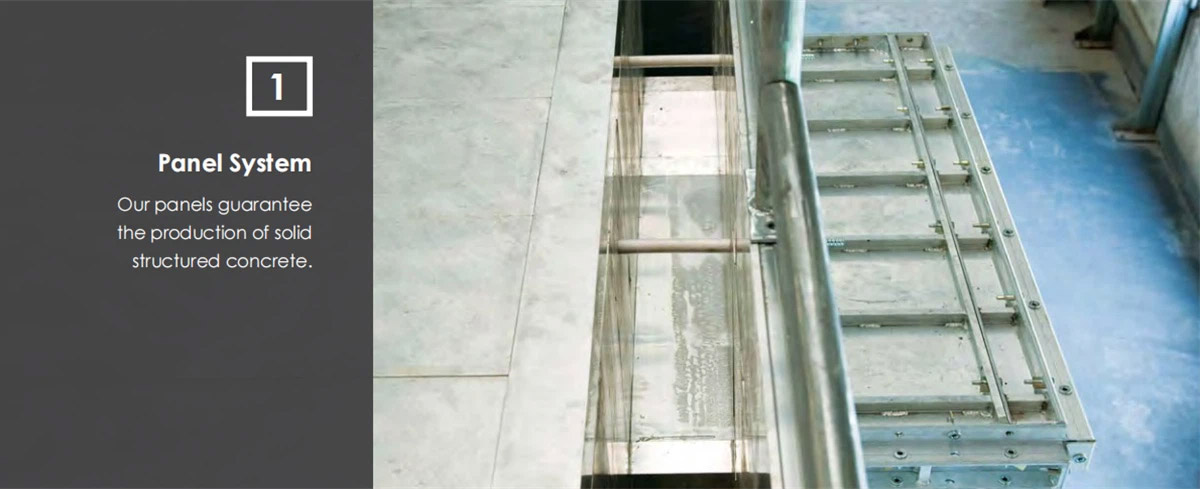

The formwork systerms comprises of the following 4 parts:
The service we can supply:
Deepening the design of construction aluminium formwork system drawings, including various formwork processing drawings; aluminium formwork manufacturing and processing; pre-assembly, packaging, transportation, and on-site technical guidance.

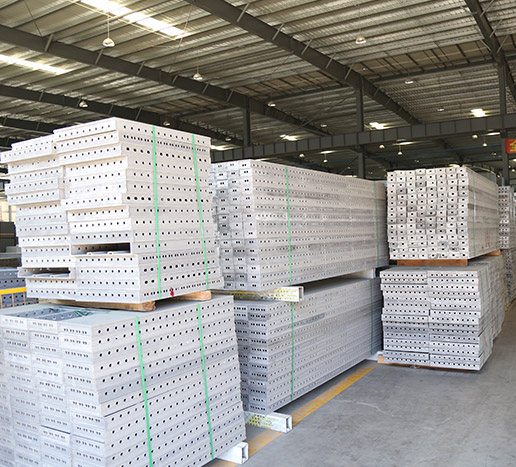

Finished aluminium formwork panel
We provide on-site technical guidance and after-sales services to assist customers in the proper installation of formwork templates.
Advance
1. Lightweight design, convenient construction process, and high operational efficiency. The average weight per square meter ranges between 20 and 25 kg.
2. Efficient support system requiring fewer support rods. The maximum independent support spacing does not exceed 1200 × 1300 mm.
3. Short construction cycle. Owing to its simple connection mechanism and ease of disassembly, the system enables completion of one floor within 4–5 days.
4. High reuse rate and low average cost. A single set of templates can be reused up to 300 times.
5. Superior concrete surface quality after formwork removal. The joints are tightly sealed, dimensional accuracy is high, and the surface remains smooth following formwork removal.
6. High Recycling Value
After scrapping, if the residual value of waste disposal is high, the manufacturer can assume responsibility for the production, application, and recycling processes.
7. Wide Range of Applications
This product is suitable for use in various structural components, including floors, columns, beams, stairs, window sills, and floating boards.
8. No On-site Construction Waste
All components of the aluminium alloy formwork system are reusable, and no construction waste is generated after the formwork is removed.
9. Standardized and Versatile
When constructing new buildings using previously used formwork, only approximately 20–30% of non-standard panels need to be replaced, thereby reducing overall costs.
10. Low Carbon Emissions
The product meets energy conservation and environmental protection standards. In many developed countries, the use of wooden formwork is prohibited, and the adoption of renewable materials is mandated.
